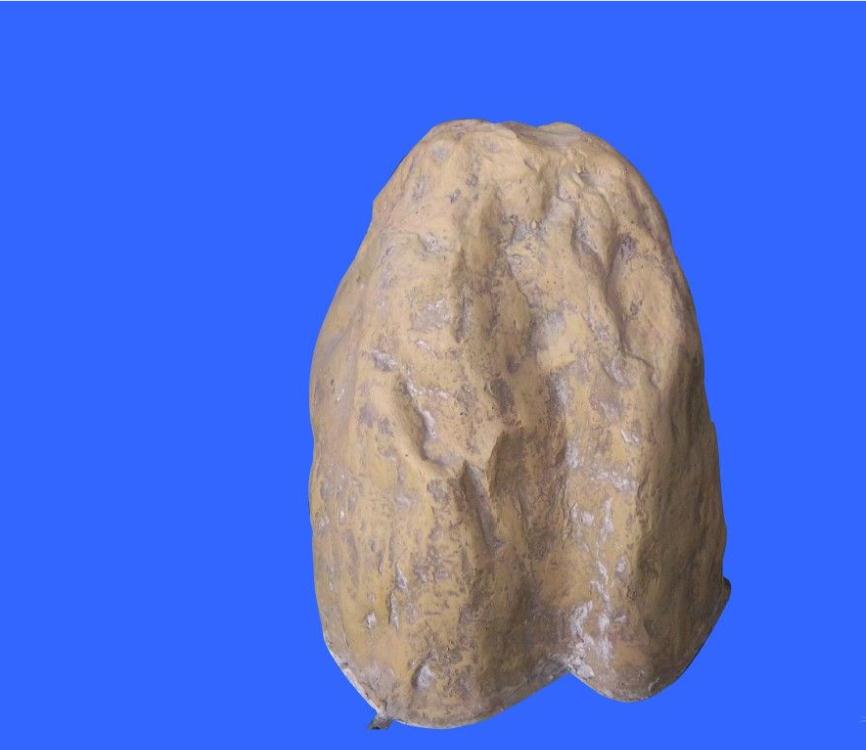

Stone-type beautified antenna

This antenna is widely used in residential village and parks where deep coverage is need. It owns features of easy installation, easy maintenance, environment harmony and low cost.

Download

Electrical parameters:

1.Frequency range: 806-960MHz 1710-2700MHz

2.Polarization: vertical

3.Gain:2dbi/ 4dbi

4.Beam width: Horizontal 360°, vertical 60-110°/ Horizontal 360°, vertical 50-90°

5.Directivity graph ovality: ±2°

6.VSWR: ≤21.5

7.Interface type: 1*N Female

8.Input impedance: 50Ω

9.Power capacity: 50W

10.Anti-lightning protection: DC ground

Product feature:

Stone-type beautified antenna: This antenna is widely used in residential village and parks where deep coverage is need. It owns features of easy installation, easy maintenance, environment harmony and low cost.
